HDSM-281F - Single-Digit Surface-Mount LED Display

Product Overview

Broadcom

📥 Download Datasheet

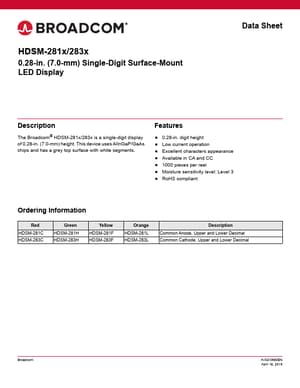

HDSM-281F Single-Digit Surface-Mount LED Display by Broadcom - Datasheet Preview — Datasheet preview – HDSM-281F

Datasheet Details

Part number	HDSM-281F
Manufacturer	Broadcom
File Size	833.06 KB
Description	Single-Digit Surface-Mount LED Display
Datasheet	HDSM-281F Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSM-281F, HDSM-281C. Please refer to the document for exact specifications by model.
Additional preview pages of the HDSM-281F datasheet.

Product details

Description

The Broadcom® HDSM-281x/283x is a single-digit display of 0.28-in.

Features

0.28-in. digit height.
Low current operation.
Excellent characters appearance.
Available in CA and CC.
1000 pieces per reel.
Moisture sensitivity level: Level 3.
RoHS compliant Ordering Information Red HDSM-281C HDSM-283C Green HDSM-281H HDSM-283H Yellow HDSM-281F HDSM-283F Orange HDSM-281L HDSM-283L.
