HDSM-281L Datasheet, Display, Broadcom

✔ HDSM-281L Features

0.28-in. digit height
Low current operation
Excellent characters appearance
Available in CA and CC
1000 pieces per reel
Moisture sensitivity level: Level 3

PDF File Details

Broadcom manufacturer logo

Part number:

HDSM-281L

Manufacturer:

Broadcom

File Size:

833.06 KB

Download:

📄 Datasheet

Description:

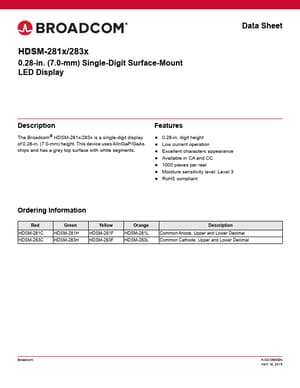

Single-digit surface-mount led display. The Broadcom® HDSM-281x/283x is a single-digit display of 0.28-in. (7.0-mm) height. This device uses AlInGaP/GaAs chips and has a gre

📥 Download PDF (833.06 KB)
