HLMP-P156 Subminiature High-Performance Red LED Lamps

Domed, Diffused Tinted, Standard Current Domed, Diffused Tinted, Low Current Domed, Nondiffused Untinted, Standard Current Domed, Nondiffused Untinted, Low Current Flat Top, Nondiffused Untinted Standard Current Flat Top, Nondiffused Untinted, Low Current Ordering Information HLMX-XXXX-X X X X X Pac.

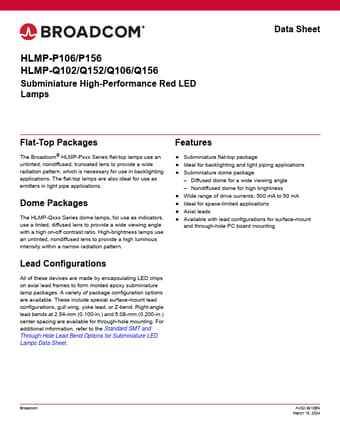

HLMP-P106/P156 HLMP-Q102/Q152/Q106/Q156 Subminiature High-Performance Red LED Lamps Data Sheet Flat-Top Packages The Broadcom® HLMP-Pxxx Series flat-top lamps use an untinted, nondiffused, truncated lens to provide a wide radiation pattern, which is necessary for use in backlighting applications. The flat-top lamps are also ideal for use as emitters in light pipe applications. Dome Packages The HLMP-Qxxx Series dome lamps, for use as indicators, use a tinted, diffused lens to provide a wide vi.

HLMP-P156 Features

* Subminiature flat-top package

* Ideal for backlighting and light piping applications

* Subminiature dome package

* Diffused dome for a wide viewing angle

* Nondiffused dome for high brightness

* Wide range of drive currents: 500 mA to 50 mA

* Ideal for space-lim

HLMP-P106-Broadcom.pdf

HLMP-P156 Datasheet Preview — This datasheet PDF includes multiple part numbers: HLMP-P156, HLMP-P106. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HLMP-P156, HLMP-P106

Manufacturer:

Broadcom

File Size:

521.84 KB

Description:

Subminiature high-performance red led lamps.

Note:

This datasheet PDF includes multiple part numbers: HLMP-P156, HLMP-P106.
Please refer to the document for exact specifications by model.
