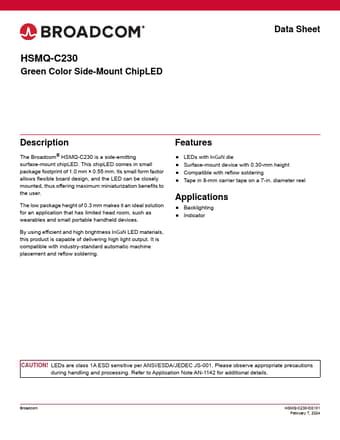

HSMQ-C230 Datasheet, Chipled, Broadcom

✔ HSMQ-C230 Features

LEDs with InGaN die
Surface-mount device with 0.30-mm height
Compatible with reflow soldering
Tape in 8-mm carrier tape on a 7-in. diameter reel Applications
Ba

✔ HSMQ-C230 Application

Backlighting
Indicator CAUTION! LEDs are class 1A ESD sensitive per ANSI/ESDA/JEDEC JS-001. Please obse

PDF File Details

Broadcom manufacturer logo

Part number:

HSMQ-C230

Manufacturer:

Broadcom

File Size:

709.89kb

Download:

📄 Datasheet

Description:

Green color side-mount chipled. The Broadcom® HSMQ-C230 is a side-emitting surface-mount chipLED. This chipLED comes in small package footprint of 1.0 mm × 0.55 mm.

📥 Download PDF (709.89kb)
