BAT54SDW, BAT54ADW SCHOTTKY BARRIER DIODE ARRAYS

BAT54SDW Description

SOT-363 Plastic-Encapsulate Diodes BAT54ADW /BAT54BRW / BAT54CDW /BAT54SDW /BAT54TW SCHOTTKY BARRIER DIODE ARRAYS .

BAT54SDW Features

* Low Forward Voltage Drop
* Fast Switching
* Small Surface Mount Package
* PN Junction Guard Ring for Transient and ESD Protection

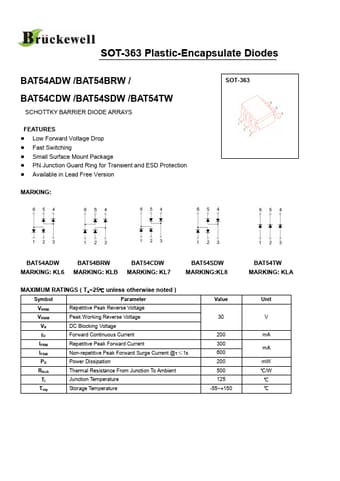

* Available in Lead Free Version MARKING: SOT-363 BAT54ADW BAT54BRW BAT54CDW MARKING: KL6 MARKING: KLB MARKING: KL7 BAT54SDW MARKING:KL8 MAXI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAT54SDW, BAT54ADW. Please refer to the document for exact specifications by model.
