BAT54CDW, BAT54ADW SCHOTTKY BARRIER DIODE ARRAYS

BAT54CDW Description

SOT-363 Plastic-Encapsulate Diodes BAT54ADW /BAT54BRW / BAT54CDW /BAT54SDW /BAT54TW SCHOTTKY BARRIER DIODE ARRAYS .

BAT54CDW Features

* Low Forward Voltage Drop
* Fast Switching
* Small Surface Mount Package
* PN Junction Guard Ring for Transient and ESD Protection
* Available in Lead Free Version MARKING: SOT-363 BAT54ADW BAT54BRW BAT54CDW MARKING: KL6 MARKING: KLB MARKING: KL7 BAT54SDW MARKING:KL8 MAXI

📥 Download Datasheet

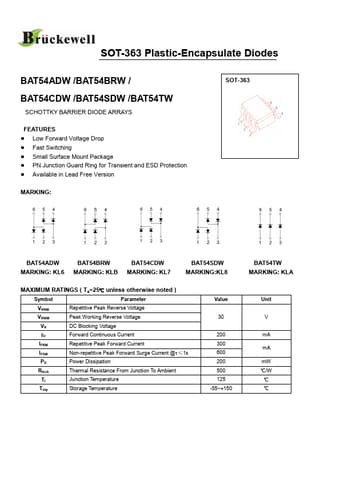

This datasheet PDF includes multiple part numbers: BAT54CDW, BAT54ADW. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
BAT54CDW, BAT54ADW
Manufacturer
Bruckewell
File Size
281.31 KB
Datasheet
BAT54ADW-bruckewell.pdf
Description
SCHOTTKY BARRIER DIODE ARRAYS
Note
This datasheet PDF includes multiple part numbers: BAT54CDW, BAT54ADW.
Please refer to the document for exact specifications by model.
