DB151S SURFACE MOUNT BRIDGE RECTIFIER

DB151S Description

DB151S thru DB157S REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 1.5 Amperes .

DB151S Features

* Rating to 1000V PRV
* Ideal for printed circuit board
* Low forward voltage drop,high current capability
* Reliable low cost construction utilizing molded plastic technique results in inexpensive product
* The plastic material has UL flammability classificat

DB151S Applications

* are based on Bruckewell’s knowledge of typical requirements that are often placed on Bruckewell products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particul

📥 Download Datasheet

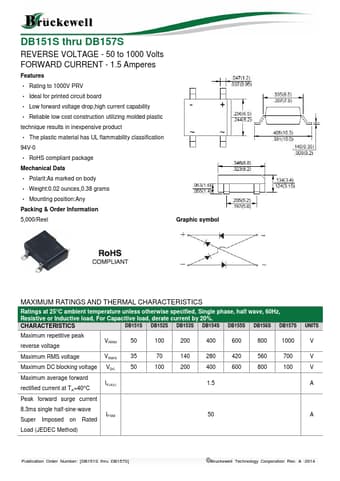

Preview of DB151S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB151S
Manufacturer
Bruckewell
File Size
289.31 KB
Datasheet
DB151S-Bruckewell.pdf
Description
SURFACE MOUNT BRIDGE RECTIFIER
