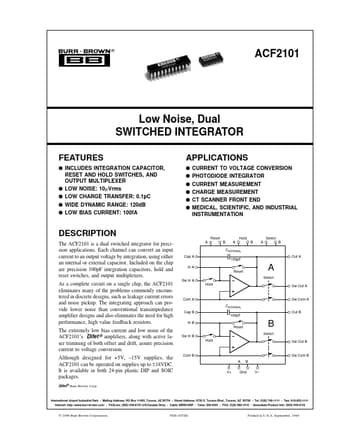

ACF2101 - SWITCHED INTEGRATOR

The ACF2101 is a dual switched integrator for precision applications.

Each channel can convert an input current to an output voltage by integration, using either an internal or external capacitor.

Included on the chip are precision 100pF integration capacitors, hold and reset switches, and output mu

ACF2101 Features

* q INCLUDES INTEGRATION CAPACITOR, RESET AND HOLD SWITCHES, AND OUTPUT MULTIPLEXER q LOW NOISE: 10µVrms q LOW CHARGE TRANSFER: 0.1pC q WIDE DYNAMIC RANGE: 120dB q LOW BIAS CURRENT: 100fA APPLICATIONS q CURRENT TO VOLTAGE CONVERSION q PHOTODIODE INTEGRATOR q CURRENT MEASUREMENT q CHARGE MEASUREMENT q
