ADS7805 Datasheet, Converter, Burr-Brown Corporation

ADS7805 Features

  • Converter q 100kHz min SAMPLING RATE q STANDARD ±10V INPUT RANGE q 86dB min SINAD WITH 20kHz INPUT q ±3.0 LSB max INL q DNL: 16 Bits No Missing Codes q SINGLE +5V SUPPLY OPERATION q PIN-COMPATIBL

PDF File Details

Part number:

ADS7805

Manufacturer:

Burr-Brown Corporation

File Size:

0.95MB

Download:

📄 Datasheet

Description:

16-bit 10ms sampling cmos analog-to-digital converter. The ADS7805 is a complete 16-bit sampling, Analog-toDigital (A/D) converter using state-of-the-art CMOS structures. It contains a com

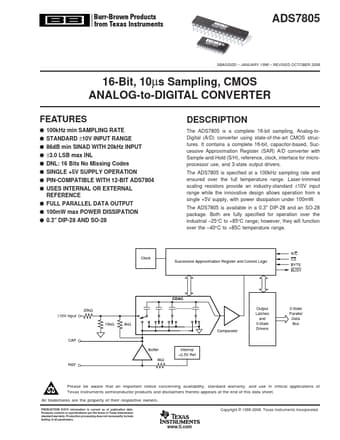

Datasheet Preview: ADS7805 📥 Download PDF (0.95MB)
Page 2 of ADS7805 Page 3 of ADS7805

ADS7805 Application

  • Applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the prope
