ADS808 Datasheet, Converter, Burr-Brown Corporation

ADS808 Features

  • Converter q DYNAMIC RANGE: SNR: 64dB at 10MHz fIN SFDR: 68dB at 10MHz fIN q PREMIUM TRACK-AND-HOLD: Low Jitter: 0.25ps rms Differential or Single-Ended Inputs Selectable Full-Scale Input Range q

PDF File Details

Part number:

ADS808

Manufacturer:

Burr-Brown Corporation

File Size:

364.25kb

Download:

📄 Datasheet

Description:

12-bit/ 70mhz sampling analog-to-digital converter. The ADS808 is a high-dynamic range, 12-bit, 70MHz, pipelined Analog-to-Digital Converter (ADC). It includes a high-bandwidth linear t

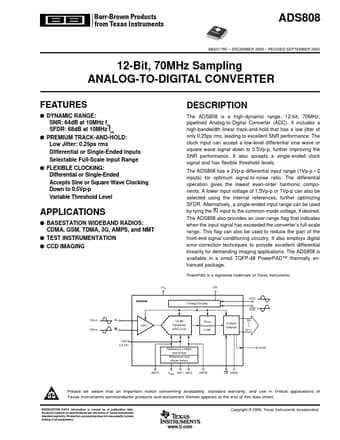

Datasheet Preview: ADS808 📥 Download PDF (364.25kb)
Page 2 of ADS808 Page 3 of ADS808

ADS808 Application

  • Applications The ADS808 is available in a small TQFP-48 PowerPAD™ thermally enhanced package. PowerPAD is a registered trademark of Texas Instrumen

TAGS

ADS808
12-Bit
70MHz
Sampling
ANALOG-TO-DIGITAL
CONVERTER
Burr-Brown Corporation
