Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS

DAC701 Features

* q VOUT AND IOUT MODELS q HIGH ACCURACY: Linearity Error ±0.0015% of FSR max Differential Linearity Error ±0.003% of FSR max q MONOTONIC (at 15 bits) OVER FULL SPECIFICATION TEMPERATURE RANGE q PIN-COMPATIBLE WITH DAC70, DAC71, DAC72 q DUAL-IN-LINE PLASTIC AND HERMETIC CERAMIC AND SOIC Digital inputs

DAC701 General Description

The DAC70X family comprise of complete 16-bit digital-to-analog converters that includes a precision buried-zener voltage reference and a low-noise, fastsettling output operational amplifier (voltage output models), all on one small monolithic chip. A combination of current-switch design techniques .

DAC701 Datasheet (402.59 KB)

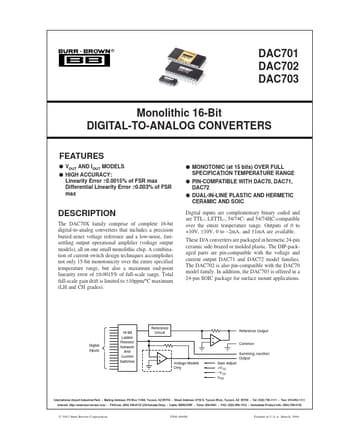

DAC701 Datasheet Preview — Preview of DAC701 PDF

Datasheet Details

Part number:

DAC701

Manufacturer:

Burr-Brown Corporation

File Size:

402.59 KB

Description:

Monolithic 16-bit digital-to-analog converters.
