DAC70502 Datasheet, Dac, Texas Instruments

DAC70502 Features

  • Dac
  • 1 16-bit performance: 1-LSB INL and DNL (max)
  • Low glitch energy: 4 nV-s
  • Wide power supply: 2.7 V to 5.5 V
  • Buffered output range: 5 V, 2.5 V, or 1.

PDF File Details

Part number:

DAC70502

Manufacturer:

Texas Instruments ↗

File Size:

2.35MB

Download:

📄 Datasheet

Description:

Voltage-output dac. The 16-bit DAC80502, 14-bit DAC70502, and 12-bit DAC60502 (DACx0502) digital-to-analog converters (DACs) are highly accurate, low-pow

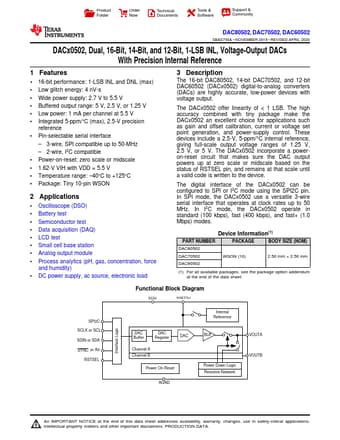

Datasheet Preview: DAC70502 📥 Download PDF (2.35MB)
Page 2 of DAC70502 Page 3 of DAC70502

DAC70502 Application

  • Applications
  • Oscilloscope (DSO)
  • Battery test
  • Semiconductor test
  • Data acquisition (DAQ)
  • LCD test
