DAC70508

Voltage-Output DAC

DAC70508 Features

* 1 Performance

* INL: ±1 LSB Maximum at 16-Bit Resolution

* TUE: ±0.1% of FSR Maximum

* Integrated 2.5 V Precision Internal Reference

* Initial Accuracy: ±5 mV Maximum

* Low Drift: 2 ppm/°C Typical, DAC80508

* High Drive Capability: 20 mA with

DAC70508 General Description

The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digitalto-analog converters (DACs) with 16-, 14- and 12-bit resolution. The DACx0508 includes a 2.5-V, 5ppm/°C internal reference, eliminating the need for an external precision reference in most applicatio.

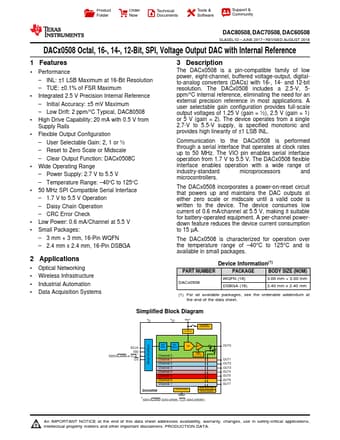

DAC70508 Datasheet (4.87 MB)

Preview of DAC70508 PDF

Datasheet Details

Part number:

DAC70508

Manufacturer:

Texas Instruments ↗

File Size:

4.87 MB

Description:

Voltage-output dac.
Product Folder Order Now Technical Documents Tools & Software Support & Community DAC80508, DAC70508, DAC60508 SLASEL1D

* JUNE 2017
<.
