DAC80, DAC80_Burr Datasheet - Burr-Brown Corporation

DAC80 Monolithic 12-Bit DIGITAL-TO-ANALOG CONVERTERS

This monolithic digital-to-analog converter is pin-forpin equivalent to the industry standard DAC80 first introduced by Burr-Brown. Its single-chip design includes the output amplifier and provides a highly stable reference capable of supplying up to 2.5mA to an external load without degradation of .

DAC80 Features

* q INDUSTRY STANDARD PINOUT q FULL ±10V SWING WITH VCC = ±12VDC q DIGITAL INPUTS ARE TTL- AND CMOS-COMPATIBLE q GUARANTEED SPECIFICATIONS WITH ±12V AND ±15V SUPPLIES q ±1/2LSB MAXIMUM NONLINEARITY: 0°C to +70°C q SETTLING TIME: 4µs max to ±0.01% of Full Scale q GUARANTEED MONOTONICITY: 0°C to +70°C q

DAC80_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: DAC80, DAC80_Burr. Please refer to the document for exact specifications by model.

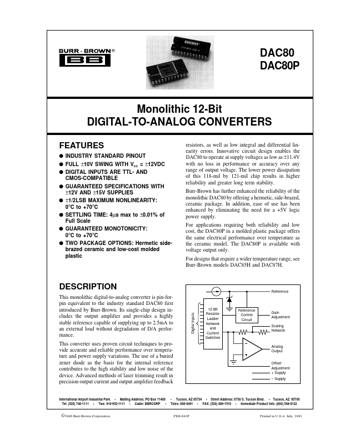

DAC80 Datasheet Preview Page 2 DAC80 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC80, DAC80_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

211.41 KB

Description:

Monolithic 12-bit digital-to-analog converters.

Note:

This datasheet PDF includes multiple part numbers: DAC80, DAC80_Burr.
Please refer to the document for exact specifications by model.
