DAC8501, DAC8501_Burr - Low-Power/ Rail-to-Rail Output/ 16-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER

DAC8501 Description

DAC8501 SBAS212A * APRIL 2001 * REVISED FEBRUARY 2003 Low-Power, Rail-to-Rail Output, 16-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER.
The DAC8501 is a low-power, single, 16-bit buffered voltage output Digital-to-Analog Converter (DAC) optimized for multiplying operation.

DAC8501 Features

* q microPOWER OPERATION: 250µA at 5V q MULTIPLYING-MODE BANDWIDTH: 350kHz q POWER-ON RESET TO ZERO q POWER SUPPLY: +2.7V to +5.5V q ENSURED MONOTONIC BY DESIGN q SETTLING TIME: 10µs to ±0.003% FSR q LOW-POWER SERIAL INTERFACE WITH SCHMITT-TRIGGERED INPUTS q ON-CHIP OUTPUT BUFFER AMPLIFIER, RAIL-TO-RA

DAC8501 Applications

* q q q q q q PROCESS CONTROL DATA ACQUISITION SYSTEMS CLOSED-LOOP SERVO-CONTROL PC PERIPHERALS PORTABLE INSTRUMENTATION PROGRAMMABLE ATTENUATION VDD VFB VREF Ref (+) 16-Bit DAC VOUT 16 DAC Register 16 SYNC SCLK DIN Power-Down Control Logic Resistor Network Shift Register GND Please be aware

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC8501, DAC8501_Burr. Please refer to the document for exact specifications by model.

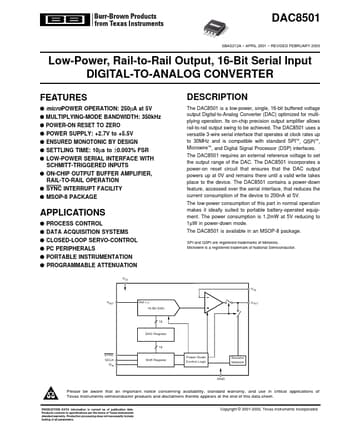

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC8501, DAC8501_Burr
Manufacturer
Burr-Brown Corporation
File Size
321.81 KB
Datasheet
DAC8501_Burr-BrownCorporation.pdf
Description
Low-Power/ Rail-to-Rail Output/ 16-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER
Note
This datasheet PDF includes multiple part numbers: DAC8501, DAC8501_Burr.
Please refer to the document for exact specifications by model.
