DAC8550 - DIGITAL-TO-ANALOG CONVERTER

DAC8550 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design DAC8550 SLAS476H * MARCH 2006 The DAC8550 is a small, low-power, voltage output, 16-bit digital-to-analog converter (DAC).

DAC8550 Features

* 1 Relative Accuracy: 8 LSB
* Glitch Energy: 0.1 nV-s
* MicroPower Operation: 140 μA at 2.7 V
* Power-On Reset to Midscale
* Power Supply: 2.7 V to 5.5 V
* 16-Bit Monotonic
* Settling Time: 10 μs to ±0.003% FSR
* Low-Power Serial Interf

DAC8550 Applications

* Process Control
* Data Acquisition Systems
* Closed-Loop Servo-Control
* PC Peripherals
* Portable Instrumentation

📥 Download Datasheet

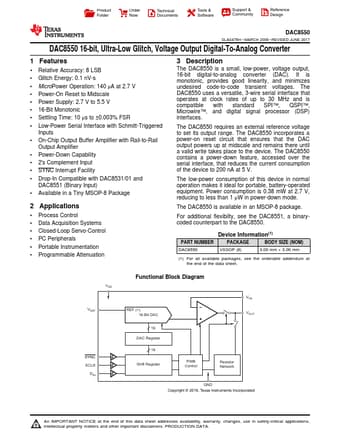

Preview of DAC8550 PDF
