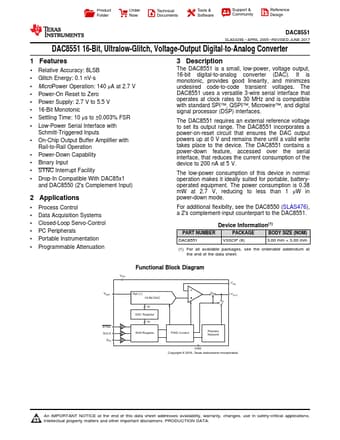

DAC8551 Datasheet, Converter, Texas Instruments

DAC8551 Features

• Converter
• 1 Relative Accuracy: 8LSB
• Glitch Energy: 0.1 nV-s
• MicroPower Operation: 140 μA at 2.7 V
• Power-On Reset to Zero
• Power Supply: 2.7 V to 5.

PDF File Details

Part number:

DAC8551

Manufacturer:

Texas Instruments ↗

File Size:

956.70kb

Download:

📄 Datasheet

Description:

Digital-to-analog converter. The DAC8551 is a small, low-power, voltage output, 16-bit digital-to-analog converter (DAC). It is monotonic, provides good linearity

DAC8551 Application

• Applications
• Process Control
• Data Acquisition Systems
• Closed-Loop Servo-Control
• PC Peripherals
• Por
