DAC8551-Q1 Datasheet - Texas Instruments

DAC8551-Q1 Automotive Voltage-Output DAC

The DAC8551-Q1 and DAC6551-Q1 are small, lowpower, voltage-output, 16- and 12-bit digital-to-analog converters (DACs) qualified for automotive applications. The DACx551-Q1 devices provide good linearity and minimize undesired code-to-code transient voltages. The devices use a versatile 3-wire serial.

DAC8551-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C4B

DAC8551-Q1-etcTI.pdf

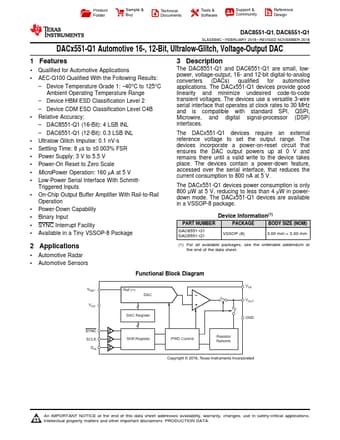

Preview of DAC8551-Q1 PDF
DAC8551-Q1 Datasheet Preview Page 2 DAC8551-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC8551-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.27 MB

Description:

Automotive voltage-output dac.
