DAC8544 - DIGITAL-TO-ANALOG CONVERTER

DAC8544 Description

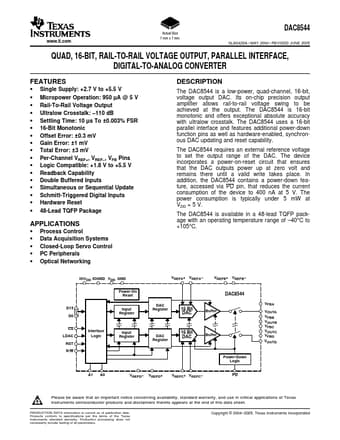

www.ti.com Actual Size 7 mm x 7 mm DAC8544 SLAS420A * MAY 2004 * REVISED JUNE 2005 QUAD, 16-BIT, RAIL-TO-RAIL VOLTAGE OUTPUT, PARAL.
The DAC8544 is a low-power, quad-channel, 16-bit, voltage output DAC.

DAC8544 Features

* Single Supply: +2.7 V to +5.5 V
* Micropower Operation: 950 µA @ 5 V
* Rail-To-Rail Voltage Output
* Ultralow Crosstalk:
* 110 dB
* Settling Time: 10 µs To ±0.003% FSR
* 16-Bit Monotonic
* Offset Error: ±0.3 mV
* Gain Error: ±1

DAC8544 Applications

* Process Control
* Data Acquisition Systems
* Closed-Loop Servo Control
* PC Peripherals
