DAC811

Microprocessor-Compatible 12-BIT DIGITAL-TO-ANALOG CONVERTER

DAC811 Features

* q SINGLE INTEGRATED CIRCUIT CHIP q MICROCOMPUTER INTERFACE: DOUBLE-BUFFERED LATCH q VOLTAGE OUTPUT: ±10V, ±5V, +10V q MONOTONICITY GUARANTEED OVER TEMPERATURE q ±1/2LSB MAXIMUM NONLINEARITY OVER TEMPERATURE q GUARANTEED SPECIFICATIONS AT ±12V AND ±15V SUPPLIES q TTL/5V CMOS-COMPATIBLE LOGIC INPUTS I

DAC811 General Description

The DAC811 is a complete, single-chip integratedcircuit, microprocessor-compatible, 12-bit digital-toanalog converter. The chip combines a precision voltage reference, microcomputer interface logic, and double-buffered latch, in a 12-bit D/A converter with a voltage output amplifier. Fast current sw.

DAC811 Datasheet (96.57 KB)

Preview of DAC811 PDF

Datasheet Details

Part number:

DAC811

Manufacturer:

Burr-Brown Corporation

File Size:

96.57 KB

Description:

Microprocessor-compatible 12-bit digital-to-analog converter.
® DAC811 For most current data sheet and other product information, visit www.burr-brown.com Microprocessor-Compatible 12-BIT DIGITAL-TO-ANALOG CON.

📁 Related Datasheet

DAC81001 - Digital-to-Analog Converters (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community DAC11001A, DAC91001, DAC81001 SLASEL0B – OCTOBER 2019 – REVISED.

DAC813 - Microprocessor-Compatible 12-BIT DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
® DAC 813 DAC813 DAC 813 Microprocessor-Compatible 12-BIT DIGITAL-TO-ANALOG CONVERTER FEATURES q ±1/2LSB NONLINEARITY OVER TEMPERATURE q GUARANTEE.

DAC8143 - 12-Bit Serial Daisy-Chain CMOS D/A Converter (Analog Devices)
a FEATURES Fast, Flexible, Microprocessor Interfacing in Serially Controlled Systems Buffered Digital Output Pin for Daisy-Chaining Multiple DACs Mini.

DAC8162 - Low-Power Buffered Voltage-Output DACs (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DAC7562, DAC7563, DAC8162 DAC8163, DAC8562.

DAC8162-Q1 - Low-Power Buffered Voltage-Output DACs (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DAC7562-Q1, DAC7563-Q1 DAC8162-Q1, DAC8163-Q1 DAC8562-Q1, DA.

DAC8162T - Low-Power Voltage-Output DACs (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DAC7562T, DAC7563T, DAC8162T DAC8163T, DAC.

DAC8163 - Low-Power Buffered Voltage-Output DACs (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DAC7562, DAC7563, DAC8162 DAC8163, DAC8562.

DAC8163-Q1 - Low-Power Buffered Voltage-Output DACs (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DAC7562-Q1, DAC7563-Q1 DAC8162-Q1, DAC8163-Q1 DAC8562-Q1, DA.

TAGS

DAC811 Microprocessor-Compatible 12-BIT DIGITAL-TO-ANALOG CONVERTER Burr-Brown Corporation

Image Gallery

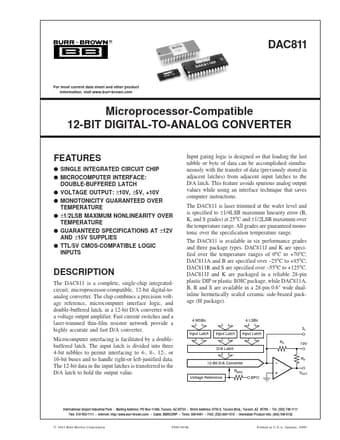

DAC811 Datasheet Preview Page 2 DAC811 Datasheet Preview Page 3
