DAC8162, DAC7562 Low-Power Buffered Voltage-Output DACs

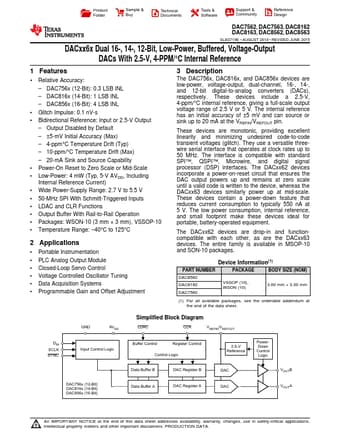

📥 Download Datasheet  Datasheet Preview Page 1

Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DAC7562, DAC7563, DAC8162 DAC8163, DAC8562.
The DAC756x, DAC816x, and DAC856x devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respe.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC8162, DAC7562. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DAC8162, DAC7562
Manufacturer
Texas Instruments ↗
File Size
2.48 MB
Datasheet
DAC7562-etcTI.pdf
Description
Low-Power Buffered Voltage-Output DACs
Note
This datasheet PDF includes multiple part numbers: DAC8162, DAC7562.
Please refer to the document for exact specifications by model.

Features

* 1 Relative Accuracy:
* DAC756x (12-Bit): 0.3 LSB INL
* DAC816x (14-Bit): 1 LSB INL
* DAC856x (16-Bit): 4 LSB INL
* Glitch Impulse: 0.1 nV-s
* Bidirectional Reference: Input or 2.5-V Output
* Output Disabled by Default
* ±5-mV Initial A

Applications

* Portable Instrumentation
* PLC Analog Output Module
* Closed-Loop Servo Control
* Voltage Controlled Oscillator Tuning
* Data Acquisition Systems
