DAC8164 DIGITAL-TO-ANALOG CONVERTER

DAC8164 Description

DAC8164DAC8164 www.ti.com SBAS410B * FEBRUARY 2008 * REVISED MAY 2011 14-Bit, Quad Channel, Ultra-Low Glitch, Voltage Output DIGIT.
The DAC8164 is a low-power, voltage-output, four-channel, 14-bit digital-to-analog converter (DAC).

DAC8164 Features

* 1
* 234 Relative Accuracy: 1LSB
* Glitch Energy: 0.15nV-s
* Internal Reference:
* 2.5V Reference Voltage (enabled by default)
* 0.004% Initial Accuracy (typ)
* 2ppm/°C Temperature Drift (typ)
* 5ppm/°C Temperature Drift (max)
* 20mA Sink

DAC8164 Applications

* Portable Instrumentation
* Closed-Loop Servo-Control
* Process Control, PLCs
* Data Acquisition Systems
* Programmable Attenuation

📥 Download Datasheet

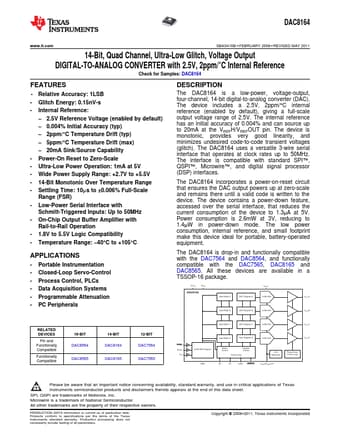

Preview of DAC8164 PDF
datasheet Preview Page 2 datasheet Preview Page 3
