DAC8163-Q1

Low-Power Buffered Voltage-Output DACs

DAC8163-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified with the Following Results:

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C4B

DAC8163-Q1 General Description

The DAC756x-Q1, DAC816x-Q1, and DAC856x-Q1 (DACxx6x-Q1) devices are low-power, voltage-output, dual-channel, 12-, 14-, and 16-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V. T.

DAC8163-Q1 Datasheet (2.08 MB)

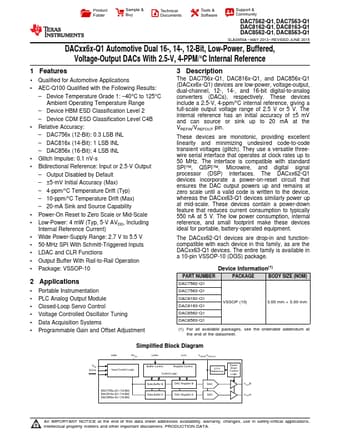

Preview of DAC8163-Q1 PDF

Datasheet Details

Part number:

DAC8163-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.08 MB

Description:

Low-power buffered voltage-output dacs.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DAC7562-Q1, DAC7563-Q1 DAC8162-Q1, DAC8163-Q1 DAC8562-Q1, DA.
