DDC101

20-BIT ANALOG-TO-DIGITAL CONVERTER

Burr-Brown Corporation

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Texas Instruments	DDC101UG4	IC ADC 20BIT ADAPTV DELTA 24SOIC	DigiKey	0	25 units	$51.64	🛒 Buy Now

DDC101 Datasheet (346.58 KB)

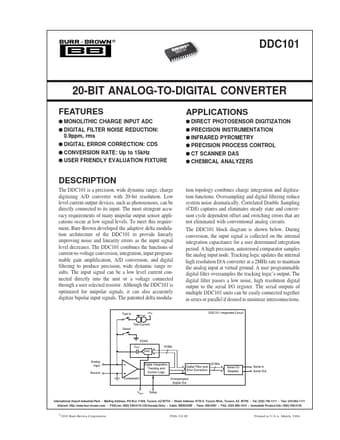

DDC101 Datasheet Preview — Preview of DDC101 PDF

Datasheet Details

Part number:

DDC101

Manufacturer:

Burr-Brown Corporation

File Size:

346.58 KB

Description:

20-bit analog-to-digital converter.

DDC101 Features

* q MONOLITHIC CHARGE INPUT ADC q DIGITAL FILTER NOISE REDUCTION: 0.9ppm, rms q DIGITAL ERROR CORRECTION: CDS q CONVERSION RATE: Up to 15kHz q USER FRIENDLY EVALUATION FIXTURE APPLICATIONS q DIRECT PHOTOSENSOR DIGITIZATION q PRECISION INSTRUMENTATION q INFRARED PYROMETRY q PRECISION PROCESS CONTROL q

DDC101 General Description

The DDC101 is a precision, wide dynamic range, charge digitizing A/D converter with 20-bit resolution. Low level current output devices, such as photosensors, can be directly connected to its input. The most stringent accuracy requirements of many unipolar output sensor applications occur at low sig.
