DDC1024 - Single & Dual Output DC/DC Converters

Product Overview

MPS Industries

Part number	DDC1024
Manufacturer	MPS Industries
File Size	230.20 KB
Description	Single & Dual Output DC/DC Converters
Datasheet	DDC1024 Datasheet
Note	This datasheet PDF includes multiple part numbers: DDC1024, DDC1000. Please refer to the document for exact specifications by model.

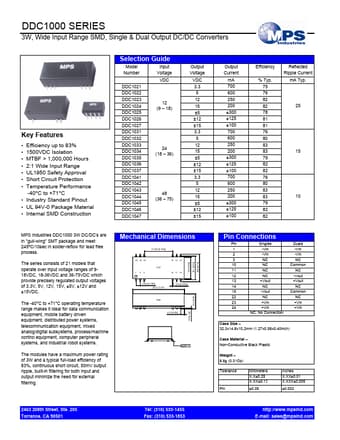

Additional preview pages of the DDC1024 datasheet.

Efficiency up to 83% 1500VDC Isolation MTBF > 1,000,000 Hours 2:1 Wide Input Range UL1950 Safety Approval Short Circuit Protection Temperature Performance -40°C to +71°C.
Industry Standard Pinout.
UL 94V-0 Package Material.
Internal SMD Construction 24 (18.
36) 15 48 (36.
75) 10 MPS Industries DDC1000 3W DC/DC's are in "gull-wing" SMT package and meet 245ºC/10sec in solder-refl.
