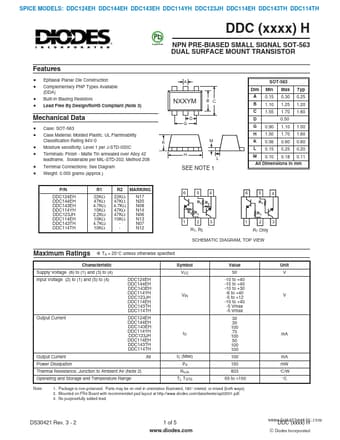

DDC114EH (DDCxxxH) NPN PRE-BIASED SMALL SIGNAL SOT-563 DUAL SURFACE MOUNT TRANSISTOR by Diodes Incorporated - Datasheet Preview — Datasheet preview – DDC114EH

Datasheet Details

Part number	DDC114EH
Manufacturer	DIODES Incorporated
File Size	83.00 KB
Description	(DDCxxxH) NPN PRE-BIASED SMALL SIGNAL SOT-563 DUAL SURFACE MOUNT TRANSISTOR
Datasheet	DDC114EH Datasheet
Note	This datasheet PDF includes multiple part numbers: DDC114EH, DDC124EH. Please refer to the document for exact specifications by model.
Additional preview pages of the DDC114EH datasheet.

Product details

Features

Epitaxial Planar Die Construction Complementary PNP Types Available (DDA) Built-In Biasing Resistors Lead Free By Design/RoHS Compliant (Note 3) A SOT-563 Dim Min 0.15 1.10 1.55 0.90 1.50 0.56 0.15 0.10 Max 0.30 1.25 1.70 0.50 1.10 1.70 0.60 0.25 0.18 1.00 1.60 0.60 0.20 0.11 Typ 0.25 1.20 1.60 A B C NXXYM D G B C D G H Mechanical Data.
Case: SOT-563 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture.
