DDC1000 Datasheet - MPS Industries

DDC1000 Single & Dual Output DC/DC Converters

www.DataSheet.co.kr DDC1000 SERIES 3W, Wide Input Range SMD, Single & Dual Output DC/DC Converters Selection Guide Model Number DDC1021 DDC1022 DDC1023 DDC1024 DDC1025 DDC1026 DDC1027 DDC1031 DDC1032 DDC1033 DDC1034 DDC1035 DDC1036 DDC1037 DDC1041 DDC1042 DDC1043 DDC1044 DDC1045 DDC1046 DDC1047 Input Voltage VDC Output Voltage VDC 3.3 5 12 15 ±5 ±12 ±15 3.3 5 12 15 ±5 ±12 ±15 3.3 5 12 15 ±5 ±12 ±15 Output Current mA 700 600 250 200 ±300 ±125 ±100 700 600 250 200 ±300 ±125 ±100 700 600 250 200 ±.

DDC1000 Features

* Efficiency up to 83% 1500VDC Isolation MTBF > 1,000,000 Hours 2:1 Wide Input Range UL1950 Safety Approval Short Circuit Protection Temperature Performance -40°C to +71°C

* Industry Standard Pinout

* UL 94V-0 Packag

DDC1000_MPSIndustries.pdf

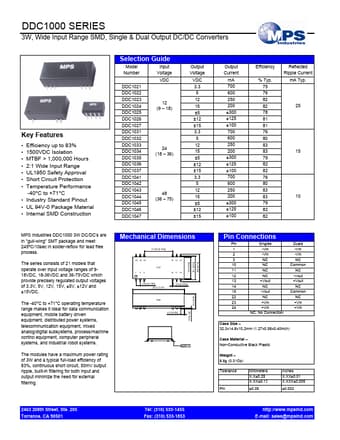

DDC1000 Datasheet Preview — Preview of DDC1000 PDF

Datasheet Details

Part number:

DDC1000

Manufacturer:

MPS Industries

File Size:

230.20 KB

Description:

Single & dual output dc/dc converters.
