PGA202 - Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER

This page provides the datasheet information for the PGA202, a member of the PGA202_Burr Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER family.

Datasheet Summary

Description

The PGA202 is a monolithic instrumentation amplifier with digitally controlled gains of 1, 10, 100, and 1000.

The PGA203 provides gains of 1, 2, 4, and 8.

Both have TTL or CMOS-compatible inputs for easy microprocessor interface.

Features

  • q.

📥 Download Datasheet

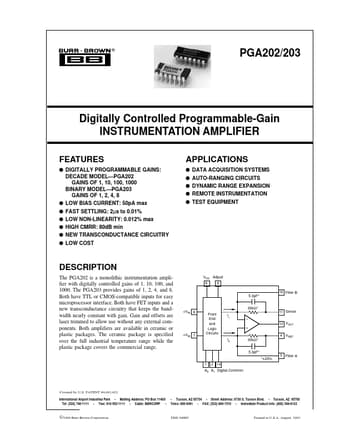

Datasheet preview – PGA202

Datasheet Details

Part number PGA202
Manufacturer Burr-Brown Corporation
File Size 139.23 KB
Description Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER
Datasheet download datasheet PGA202 Datasheet
