PGA205 - Programmable Gain INSTRUMENTATION AMPLIFIER

This page provides the datasheet information for the PGA205, a member of the PGA205_Burr Programmable Gain INSTRUMENTATION AMPLIFIER family.

Datasheet Summary

Description

The PGA204 and PGA205 are low cost, general purpose programmable-gain instrumentation amplifiers offering excellent accuracy.

1, 10, 100, 1000, and PGA205

1, 2, 4, 8V/V.

Features

  • q.

📥 Download Datasheet

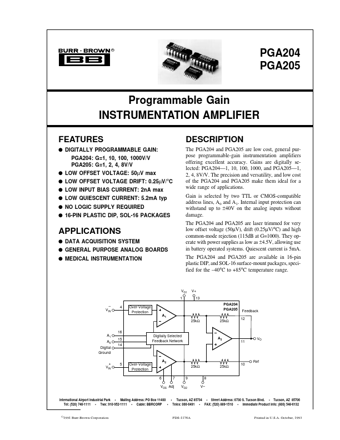

Datasheet preview – PGA205

Datasheet Details

Part number PGA205
Manufacturer Burr-Brown Corporation
File Size 261.24 KB
Description Programmable Gain INSTRUMENTATION AMPLIFIER
Datasheet download datasheet PGA205 Datasheet
Additional preview pages of the PGA205 datasheet.

📁 Similar Datasheet

  • PGA2310 - Stereo Audio Volume Controller (Texas Instruments)
  • PGA2311 - Stereo Audio Volume Controller (Texas Instruments)
  • PGA2311UA - Stereo Audio Volume Controller (Texas Instruments)
  • PGA2320 - Stereo Audio Volume Controller (Burr-Brown)
  • PGA2505 - MICROPHONE PREAMPLIFIER (Texas Instruments)
  • PGA26E07BA - N-channel enhancement mode FET (Panasonic)
  • PGA26E19BA - N-channel enhancement mode FET (Panasonic)
  • PGA280 - Programmable Gain Instrumentation Amplifier (Texas Instruments)
  • PGA281 - Programmable Gain Instrumentation Amplifier (Texas Instruments)
  • PGA-102+ - Monolithic Amplifier (Mini-Circuits)
Other Datasheets by Burr-Brown Corporation
  • PGA200 - Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER
  • PGA201 - Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER
  • PGA202 - Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER
  • PGA203 - Digitally Controlled Programmable-Gain INSTRUMENTATION AMPLIFIER
  • PGA204 - Programmable Gain INSTRUMENTATION AMPLIFIER
  • PGA206 - High-Speed Programmable Gain INSTRUMENTATION AMPLIFIER
  • PGA207 - High-Speed Programmable Gain INSTRUMENTATION AMPLIFIER
  • PGA2310 - Stereo Audio Volume Controller

Full PDF Text Transcription

Click to expand full text
® PGA204 PGA205 Programmable Gain INSTRUMENTATION AMPLIFIER FEATURES q DIGITALLY PROGRAMMABLE GAIN: PGA204: G=1, 10, 100, 1000V/V PGA205: G=1, 2, 4, 8V/V q LOW OFFSET VOLTAGE: 50µV max q LOW OFFSET VOLTAGE DRIFT: 0.25µV/°C q LOW INPUT BIAS CURRENT: 2nA max q LOW QUIESCENT CURRENT: 5.2mA typ q NO LOGIC SUPPLY REQUIRED q 16-PIN PLASTIC DIP, SOL-16 PACKAGES DESCRIPTION The PGA204 and PGA205 are low cost, general purpose programmable-gain instrumentation amplifiers offering excellent accuracy. Gains are digitally selected: PGA204—1, 10, 100, 1000, and PGA205—1, 2, 4, 8V/V. The precision and versatility, and low cost of the PGA204 and PGA205 make them ideal for a wide range of applications. Gain is selected by two TTL or CMOS-compatible address lines, A0 and A1.
