PGA204

Programmable Gain INSTRUMENTATION AMPLIFIER

PGA204 Features

* q DIGITALLY PROGRAMMABLE GAIN: PGA204: G=1, 10, 100, 1000V/V PGA205: G=1, 2, 4, 8V/V q LOW OFFSET VOLTAGE: 50µV max q LOW OFFSET VOLTAGE DRIFT: 0.25µV/°C q LOW INPUT BIAS CURRENT: 2nA max q LOW QUIESCENT CURRENT: 5.2mA typ q NO LOGIC SUPPLY REQUIRED q 16-PIN PLASTIC DIP, SOL-16 PACKAGES DESCRIPTION

PGA204 General Description

The PGA204 and PGA205 are low cost, general purpose programmable-gain instrumentation amplifiers offering excellent accuracy. Gains are digitally selected: PGA204

*1, 10, 100, 1000, and PGA205

*1, 2, 4, 8V/V. The precision and versatility, and low cost of the PGA204 and PGA205 make the.

PGA204 Datasheet (261.24 KB)

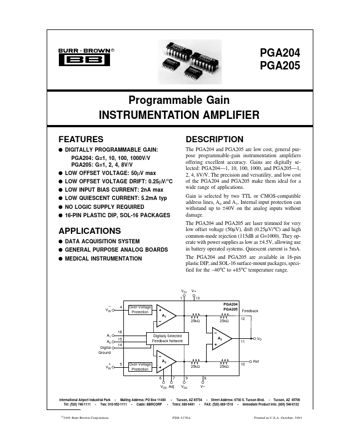

Preview of PGA204 PDF

Datasheet Details

Part number:

PGA204

Manufacturer:

Burr-Brown Corporation

File Size:

261.24 KB

Description:

Programmable gain instrumentation amplifier.
