BUF01900, BUF01900-Burr Datasheet - Burr-Brown

BUF01900 Programmable Voltage Source

The BUF01900 and BUF01901 provide a programmable voltage output with 10-bit resolution. Programming of the output occurs through an industry-standard, two-wire serial interface. Once the correct VCOM voltage is established it can easily be stored into the integrated nonvolatile memory. An initial ou.

BUF01900 Features

* D 10-BIT RESOLUTION D RAIL-TO-RAIL OUTPUT D ONBOARD NONVOLATILE MEMORY D IOUT: 100mA D LOW SUPPLY CURRENT: 900µA D SUPPLY VOLTAGE: 7V to 18V D DIGITAL SUPPLY: 2.0V to 5.5V D INDUSTRY-STANDARD, TWO-WIRE INTERFACE D HIGH ESD RATING: 2kV HBM, 500V CDM APPLICATIONS D LCD PANEL VCOM CALIBRATION D LCD PAN

BUF01900-Burr-Brown.pdf

This datasheet PDF includes multiple part numbers: BUF01900, BUF01900-Burr. Please refer to the document for exact specifications by model.

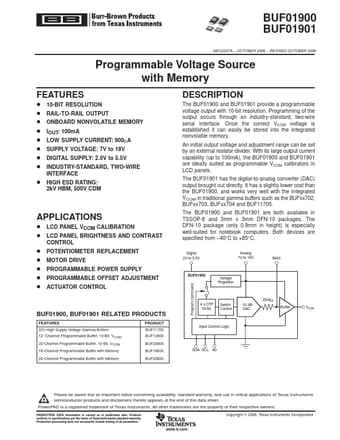

BUF01900 Datasheet Preview Page 2 BUF01900 Datasheet Preview Page 3

Datasheet Details

Part number:

BUF01900, BUF01900-Burr

Manufacturer:

Burr-Brown

File Size:

1.33 MB

Description:

Programmable voltage source.

Note:

This datasheet PDF includes multiple part numbers: BUF01900, BUF01900-Burr.
Please refer to the document for exact specifications by model.
