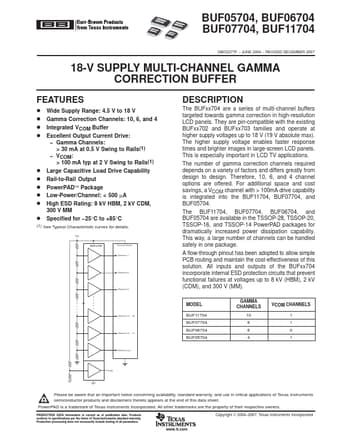

BUF05704 18-V SUPPLY MULTI-CHANNEL GAMMA CORRECTION BUFFER

The BUFxx704 are a series of multi-channel buffers targeted towards gamma correction in high-resolution LCD panels. They are pin-compatible with the existing BUFxx702 and BUFxx703 families and operate at higher supply voltages up to 18 V (19 V absolute max). The higher supply voltage enables faster .

BUF05704 Features

* D Wide Supply Range: 4.5 V to 18 V D Gamma Correction Channels: 10, 6, and 4 D Integrated VCOM Buffer D Excellent Output Current Drive:

* Gamma Channels: > 30 mA at 0.5 V Swing to Rails(1)

* VCOM: > 100 mA typ at 2 V Swing to Rails(1) D Large Capacitive Load Drive Capability D Rail-t
