DSD1792A - AUDIO STEREO DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the DSD1792A, a member of the DSD1792A_Burr AUDIO STEREO DIGITAL-TO-ANALOG CONVERTER family.

Datasheet Summary

Description

D Differential Current Output: 7.8 mA p-p D 8× Oversampling Digital Filter: Stop-Band Attenuation: 130 dB Pass-Band Ripple: ±0.00001 dB D Sampling Frequency: 10 kHz to 200 kHz D System Clock: 128, 192, 256, 384, 512, or D D D D D 768 fS With Autodetect D Dual Supply O

Features

  • D Supports Both DSD and PCM Formats D 24-Bit Resolution D Analog Performance:.
  • Dynamic Range:.
  • 132 dB (9 V rms, Mono).
  • 129 dB (4.5 V rms, Stereo).
  • 127 dB (2 V rms, Stereo).
  • THD+N: 0.0004% D 5-V Tolerant Digital Inputs D Small 28-Lead SSOP Package.

📥 Download Datasheet

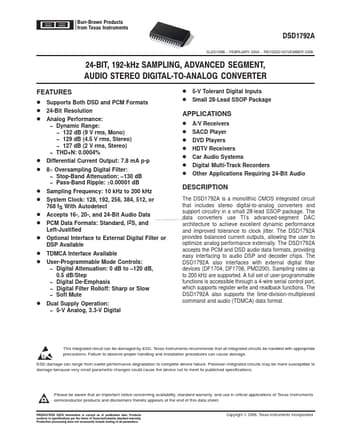

Datasheet preview – DSD1792A
