INA201 (INA200 - INA202) High-Side Measurement Current-Shunt Monitor

The INA200, INA201, and INA202 are high-side current-shunt monitors with voltage output. The INA200 *INA202 can sense drops across shunts at common-mode voltages from *16V to 80V. The INA200 *INA202 are available with three output voltage scales: 20V/V, 50V/V, and 100V/V, with .

INA201 Features

* D D D D D D D D D COMPLETE CURRENT SENSE SOLUTION 0.6V INTERNAL VOLTAGE REFERENCE INTERNAL OPEN-DRAIN COMPARATOR LATCHING CAPABILITY ON COMPARATOR COMMON-MODE RANGE:

* 16V to +80V HIGH ACCURACY: 3.5% MAX ERROR OVER TEMPERATURE BANDWIDTH: 500kHz (INA200) QUIESCENT CURRENT: 1800µA (max) PACKAGE

INA200_Burr-Brown.pdf

This datasheet PDF includes multiple part numbers: INA201, INA200_Burr. Please refer to the document for exact specifications by model.

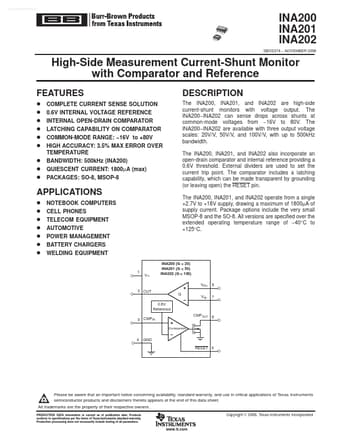

INA201 Datasheet Preview Page 2 INA201 Datasheet Preview Page 3

Datasheet Details

Part number:

INA201, INA200_Burr

Manufacturer:

Burr-Brown

File Size:

311.58 KB

Description:

(ina200 - ina202) high-side measurement current-shunt monitor.
