INA207 High-Side Measurement Current-Shunt Monitor

The INA206, INA207, and INA208 are a family of high-side, current-shunt monitors with voltage output, dual comparators, and voltage reference. The INA206, INA207, and INA208 can sense drops across shunts at common-mode voltages from *16V to +80V. The INA206, INA207, and INA208 are available .

INA207 Features

* D COMPLETE CURRENT SENSE SOLUTION D DUAL COMPARATORS:

* Comparator 1 with Latch

* Comparator 2 with Optional Delay D COMMON-MODE RANGE:

* 16V to +80V D HIGH ACCURACY: 3.5% (max) OVER TEMP D BANDWIDTH: 500kHz D QUIESCENT CURRENT: 1.8mA D PACKAGES: SO-14, TSSOP-14, MSOP-10 APPLI

INA206-Burr-Brown.pdf

This datasheet PDF includes multiple part numbers: INA207, INA206-Burr. Please refer to the document for exact specifications by model.

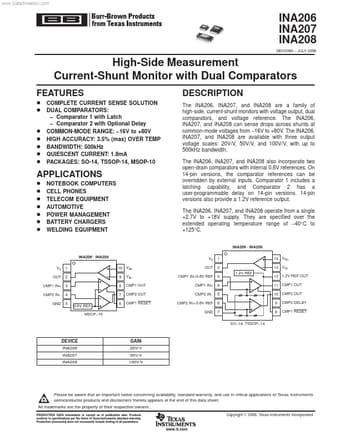

INA207 Datasheet Preview Page 2 INA207 Datasheet Preview Page 3

Datasheet Details

Part number:

INA207, INA206-Burr

Manufacturer:

Burr-Brown

File Size:

455.47 KB

Description:

High-side measurement current-shunt monitor.

Note:

This datasheet PDF includes multiple part numbers: INA207, INA206-Burr.
Please refer to the document for exact specifications by model.
