INA201, INA200 Datasheet - Texas Instruments

INA201 High-Side Measurement Current-Shunt Monitor

The INA200, INA201, and INA202 devices are highside current-shunt monitors with voltage output and integrated comparator. The INA20x devices can sense drops across shunts at common-mode voltages from *16 V to 80 V. The INA20x series is available with three output voltage scales: 20 V/V, 50 V.

INA201 Features

* 1 Complete Current Sense Solution

* Three Gain Options Available:

* INA200 = 20 V/V

* INA201 = 50 V/V

* INA202 = 100 V/V

* 0.6-V Internal Voltage Reference

* Internal Open-Drain Comparator

* Latching Capability on Comparator

INA200-etcTI.pdf

This datasheet PDF includes multiple part numbers: INA201, INA200. Please refer to the document for exact specifications by model.

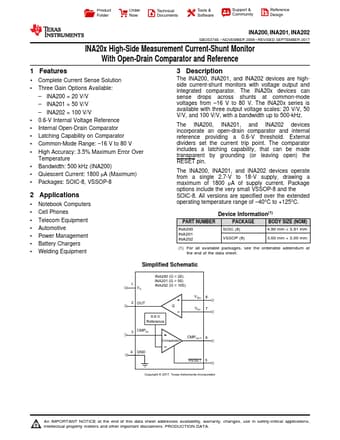

INA201 Datasheet Preview Page 2 INA201 Datasheet Preview Page 3
