INA2128 Datasheet, Amplifier, Burr-Brown Corporation

INA2128 Features

  • Amplifier q LOW OFFSET VOLTAGE: 50µV max q LOW DRIFT: 0.5µV/°C max q LOW INPUT BIAS CURRENT: 5nA max q HIGH CMR: 120dB min q INPUTS PROTECTED TO ±40V q WIDE SUPPLY RANGE: ±2.25V to ±18V q LOW QUI

PDF File Details

Part number:

INA2128

Manufacturer:

Burr-Brown Corporation

File Size:

1.25MB

Download:

📄 Datasheet

Description:

Instrumentation amplifier. The INA2128 is a dual, low power, general purpose instrumentation amplifier offering excellent accuracy. Its versatile 3-op amp desig

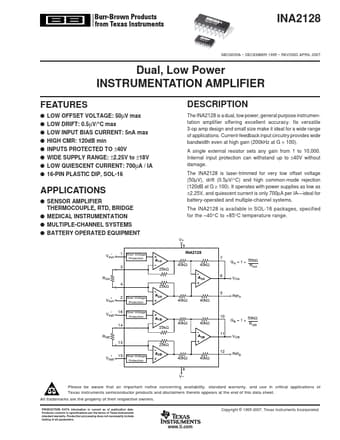

Datasheet Preview: INA2128 📥 Download PDF (1.25MB)
Page 2 of INA2128 Page 3 of INA2128

INA2128 Application

  • Applications q SENSOR AMPLIFIER THERMOCOUPLE, RTD, BRIDGE q MEDICAL INSTRUMENTATION q MULTIPLE-CHANNEL SYSTEMS q BATTERY OPERATED EQUIPMENT VIN
