INA2126 Datasheet, Amplifier, Burr-Brown Corporation

INA2126 Features

  • Amplifier q LOW QUIESCENT CURRENT: 175µA/chan. q WIDE SUPPLY RANGE: ±1.35V to ±18V q LOW OFFSET VOLTAGE: 250µV max q LOW OFFSET DRIFT: 3µV/°C max q LOW NOISE: 35nV/√ Hz q LOW INPUT BIAS CURRENT:

PDF File Details

Part number:

INA2126

Manufacturer:

Burr-Brown Corporation

File Size:

314.58kb

Download:

📄 Datasheet

Description:

Micropower instrumentation amplifier. The INA126 and INA2126 are precision instrumentation amplifiers for accurate, low noise differential signal acquisition. Their two-op

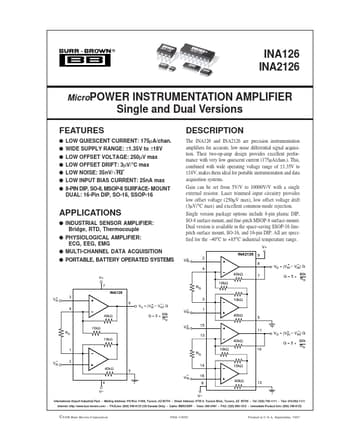

Datasheet Preview: INA2126 📥 Download PDF (314.58kb)
Page 2 of INA2126 Page 3 of INA2126

INA2126 Application

  • Applications q INDUSTRIAL SENSOR AMPLIFIER: Bridge, RTD, Thermocouple q PHYSIOLOGICAL AMPLIFIER: ECG, EEG, EMG q MULTI-CHANNEL DATA ACQUISITION q PO
