INA210

Current-Shunt Monitors

INA210 Features

* Updated format to match new TI layout and flow. Tables, figures and cross-references use a new numbering sequence throughout the document. Wide Common-Mode Range:

* 0.3 V to 26 V

* Offset Voltage: ±35 μV (Maximum, INA210) (Enables Shunt Drops of 10-mV Full-Scale)

* A

INA210 General Description

The INA21x are voltage-output, current-shunt monitors (also called current-sense amplifiers) that are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunts at common-.

INA210 Datasheet (1.54 MB)

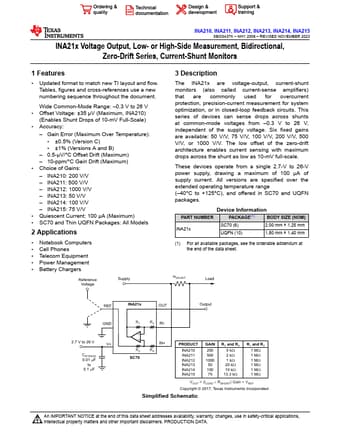

Preview of INA210 PDF

Datasheet Details

Part number:

INA210

Manufacturer:

Texas Instruments ↗

File Size:

1.54 MB

Description:

Current-shunt monitors.
INA210, INA211, INA212, INA213, INA214, INA215 SBOS437K

* MAY 2008

* REVISED NOVEMBER 2023 INA21x Voltage Output, Low- or High-Side Me.
