OPA27

Ultra-Low Noise Precision OPERATIONAL AMPLIFIERS

OPA27 Features

* q LOW NOISE: 4.5nV/√Hz max at 1kHz q LOW OFFSET: 100µV max q LOW DRIFT: 0.4µV/°C q HIGH OPEN-LOOP GAIN: 117dB min q HIGH COMMON-MODE REJECTION: 100dB min q HIGH POWER-SUPPLY REJECTION: 94dB min q FITS OP-07, OP-05, AD510, AND AD517 SOCKETS APPLICATIONS q PRECISION INSTRUMENTATION q DATA ACQUISITION

OPA27 General Description

The OPA27 and OPA37 are ultra-low noise, high-precision monolithic operational amplifiers. Laser-trimmed thin-film resistors provide excellent long-term voltage offset stability and allow superior voltage offset compared to common zener-zap techniques. A unique bias current cancellation circuit allo.

OPA27 Datasheet (1.08 MB)

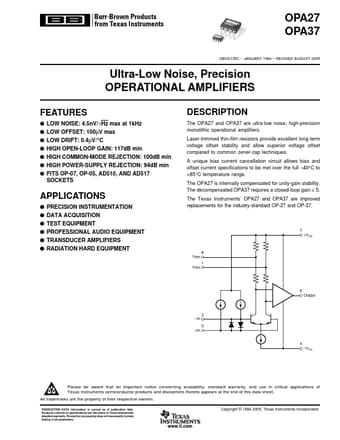

Preview of OPA27 PDF

Datasheet Details

Part number:

OPA27

Manufacturer:

Burr-Brown

File Size:

1.08 MB

Description:

Ultra-low noise precision operational amplifiers.
