OPA2705

Low-Cost / CMOS / Rail-to-Rail / I/O OPERATIONAL AMPLIFIERS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Texas Instruments OPA2705EA-250 IC CMOS 2 CIRCUIT 8VSSOP DigiKey 296 100 units
$1.24

OPA2705 Datasheet (280.89 KB)

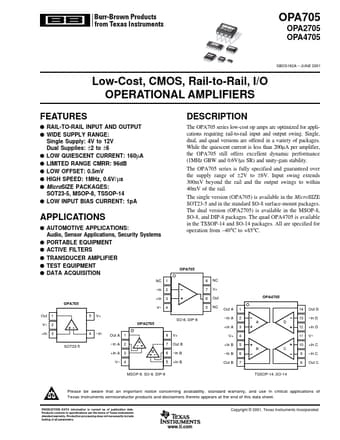

Preview of OPA2705 PDF Datasheet

Datasheet Details

Part number:

OPA2705

Manufacturer:

Burr-Brown

File Size:

280.89 KB

Description:

Low-cost / cmos / rail-to-rail / i/o operational amplifiers

OPA2705 Features

* q RAIL-TO-RAIL INPUT AND OUTPUT q WIDE SUPPLY RANGE: Single Supply: 4V to 12V Dual Supplies: ±2 to ±6 q LOW QUIESCENT CURRENT: 160µA q LIMITED RANGE CMRR: 96dB q LOW OFFSET: 0.5mV q HIGH SPEED: 1MHz, 0.6V/ µs q MicroSIZE PACKAGES: SOT23-5, MSOP-8, TSSOP-14 q LOW INPUT BIAS CURRENT: 1pA DESCRIPTION

OPA2705 General Description

The OPA705 series low-cost op amps are optimized for applications requiring rail-to-rail input and output swing. Single, dual, and quad versions are offered in a variety of packages. While the quiescent current is less than 200µA per amplifier, the OPA705 still offers excellent dynamic performance (.
