OPA358 Datasheet, Amp, Burr-Brown

OPA358 Features

  • Amp D HIGH BANDWIDTH: 80MHz D HIGH SLEW RATE: 55V/µs D EXCELLENT VIDEO PERFORMANCE
  • 0.5dB GAIN FLATNESS: 25MHz
  • DIFFERENTIAL GAIN: 0.3%
  • DIFFERENTIAL PHASE: 0.7°

PDF File Details

Part number:

OPA358

Manufacturer:

Burr-Brown

File Size:

876.63kb

Download:

📄 Datasheet

Description:

80mhz high-speed op amp. The high-speed OPA358 amplifier is optimized for 3V single-supply operation. The output typically swings within 5mV of GND with a 150

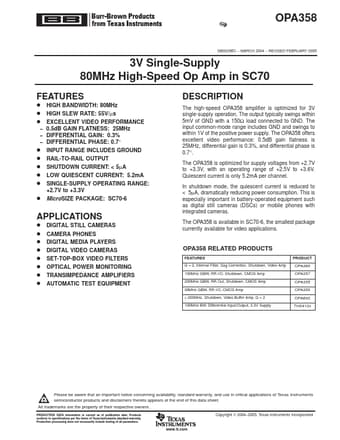

Datasheet Preview: OPA358 📥 Download PDF (876.63kb)
Page 2 of OPA358 Page 3 of OPA358

OPA358 Application

  • Applications D DIGITAL STILL CAMERAS D CAMERA PHONES D DIGITAL MEDIA PLAYERS D DIGITAL VIDEO CAMERAS D SET-TOP-BOX VIDEO FILTERS D OPTICAL POWER MON
