OPA314

1.8-V CMOS Operational Amplifier

OPA314 Features

* 1 Low IQ: 150 µA/ch

* Wide Supply Range: 1.8 V to 5.5 V

* Low Noise: 14 nV/√Hz at 1 kHz

* Gain Bandwidth: 3 MHz

* Low Input Bias Current: 0.2 pA

* Low Offset Voltage: 0.5 mV

* Unity-Gain Stable

* Internal RF/EMI Filter

* Extend

OPA314 General Description

The OPA314 family of single-, dual-, and quadchannel operational amplifiers represents a new generation of low-power, general-purpose CMOS amplifiers. Rail-to-rail input and output swings, low quiescent current (150 μA typically at 5 VS) combined with a wide bandwidth of 3 MHz, and very low noise (1.

OPA314 Datasheet (2.44 MB)

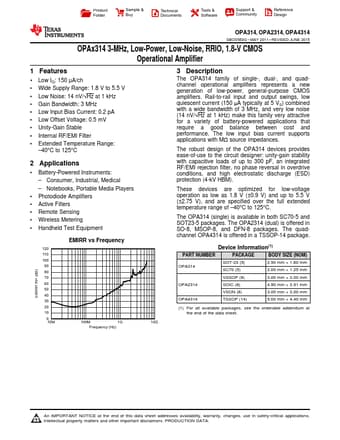

Preview of OPA314 PDF

Datasheet Details

Part number:

OPA314

Manufacturer:

Texas Instruments ↗

File Size:

2.44 MB

Description:

1.8-v cmos operational amplifier.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design OPA314, OPA2314, OPA4314 SBOS563G

.
