OPA317, OPA4317 Datasheet - Texas Instruments

OPA317 Rail-to-Rail I/O Operational Amplifier

The OPA317 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the Zerø-Drift family of amplifiers that use a proprietary autocalibration technique to simultaneously provide low offset voltage (90 μV maximum) and near-zero drift.

OPA317 Features

* 1 Supply Voltage: 1.8 V to 5.5 V

* microPackages:

* Single: SOT23-5, SC-70, SOIC-8

* Dual: VSSOP-8, SOIC-8

* Quad: SOIC-14, TSSOP-14

* Low Offset Voltage: 20 μV (Typical)

* CMRR: 108-dB (Typical) PSRR

* Quiescent Current: 35 μA (Maximu

OPA4317-etcTI.pdf

This datasheet PDF includes multiple part numbers: OPA317, OPA4317. Please refer to the document for exact specifications by model.

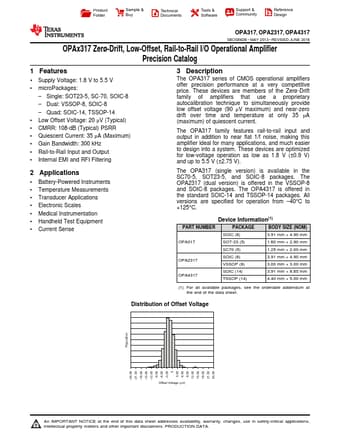

OPA317 Datasheet Preview Page 2 OPA317 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA317, OPA4317

Manufacturer:

Texas Instruments ↗

File Size:

1.62 MB

Description:

Rail-to-rail i/o operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA317, OPA4317.
Please refer to the document for exact specifications by model.
