OPA354 - CMOS Operational Amplifier

Name: OPA354
SKU: OPA354-1437486

Texas Instruments

📥 Download Datasheet

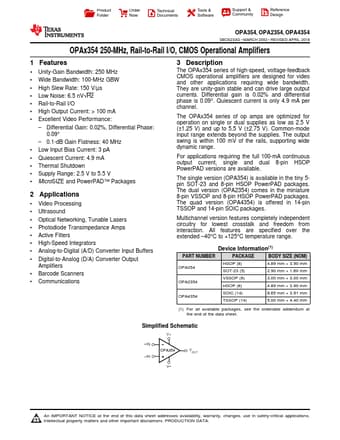

OPA354 Datasheet Preview — Preview of OPA354 PDF

Datasheet Details

Part number	OPA354
Manufacturer	Texas Instruments
File Size	2.32 MB
Description	CMOS Operational Amplifier
Datasheet	OPA354-etcTI.pdf

OPA354 Product details

Description

The OPAx354 series of high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth.

Features

1 Unity-Gain Bandwidth: 250 MHz.
Wide Bandwidth: 100-MHz GBW.
High Slew Rate: 150 V/µs.
Low Noise: 6.5 nV√Hz.
Rail-to-Rail I/O.
High Output Current: > 100 mA.
Excellent Video Performance:.
Differential Gain: 0.02%, Differential Phase: 0.09°.
0.1-dB Gain Flatness: 40 MHz.
Low Input Bias Current: 3 pA.
Quiescent Current: 4.9 mA.
Thermal Shutdown.
Supply Range: 2.5 V to 5.5 V.
