OPA634 Datasheet, Amplifiers, Burr-Brown

OPA634 Features

  • Amplifiers q q q q q q q q q HIGH BANDWIDTH: 150MHz (G = +2) +3V AND +5V OPERATION ZERO POWER DISABLE (OPA635) INPUT RANGE INCLUDES GROUND 4.8V OUTPUT SWING ON +5V SUPPLY HIGH OUTPUT CURRENT: 80mA

PDF File Details

Part number:

OPA634

Manufacturer:

Burr-Brown

File Size:

179.86kb

Download:

📄 Datasheet

Description:

Wideband / single supply operational amplifiers. The OPA634 and OPA635 are low power, voltagefeedback, high-speed amplifiers designed to operate on +3V or +5V single-supply voltages.

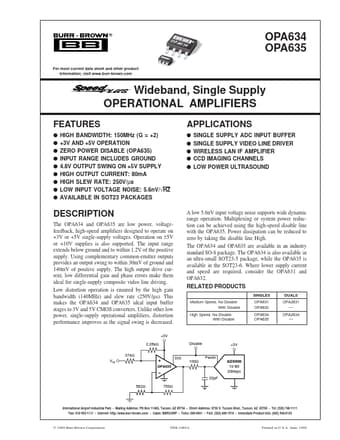

Datasheet Preview: OPA634 📥 Download PDF (179.86kb)
Page 2 of OPA634 Page 3 of OPA634

OPA634 Application

  • Applications q q q q q SINGLE SUPPLY ADC INPUT BUFFER SINGLE SUPPLY VIDEO LINE DRIVER WIRELESS LAN IF AMPLIFIER CCD IMAGING CHANNELS LOW POWER ULTRA
