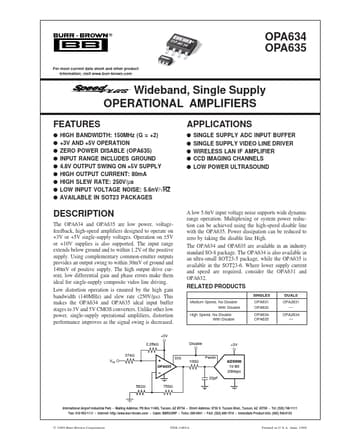

OPA635 Datasheet - Burr-Brown

OPA635 Wideband / Single Supply OPERATIONAL AMPLIFIERS

The OPA634 and OPA635 are low power, voltagefeedback, high-speed amplifiers designed to operate on +3V or +5V single-supply voltages. Operation on ±5V or +10V supplies is also supported. The input range extends below ground and to within 1.2V of the positive supply. Using complementary common-emitte.

OPA635 Features

* q q q q q q q q q HIGH BANDWIDTH: 150MHz (G = +2) +3V AND +5V OPERATION ZERO POWER DISABLE (OPA635) INPUT RANGE INCLUDES GROUND 4.8V OUTPUT SWING ON +5V SUPPLY HIGH OUTPUT CURRENT: 80mA HIGH SLEW RATE: 250V/µs LOW INPUT VOLTAGE NOISE: 5.6nV/√HZ AVAILABLE IN SOT23 PACKAGES APPLICATIONS q q q q q SIN

OPA635 Datasheet (179.86 KB)
