OPA657, OPA657_Burr Datasheet - Burr-Brown

OPA657 OPERATIONAL AMPLIFIER

The OPA657 combines a high gain bandwidth, low distor-tion, voltage-feedback op amp with a low voltage noise JFET-input stage to offer a very high dynamic range amplifier for high precision ADC (Analog-to-Digital Converter) driving or wideband transimpedance applications. Photodiode applications wil.

OPA657 Features

* q HIGH GAIN BANDWIDTH PRODUCT: 1.6GHz q HIGH BANDWIDTH 275MHz (G = +10) q LOW INPUT OFFSET VOLTAGE: ±0.25mV q LOW INPUT BIAS CURRENT: 2pA q LOW INPUT VOLTAGE NOISE: 4.8nV/ Hz q HIGH OUTPUT CURRENT: 70mA q FAST OVERDRIVE RECOVERY APPLICATIONS q WIDEBAND PHOTODIODE AMPLIFIER q WAFER SCANNING EQUIPMENT

OPA657_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: OPA657, OPA657_Burr. Please refer to the document for exact specifications by model.

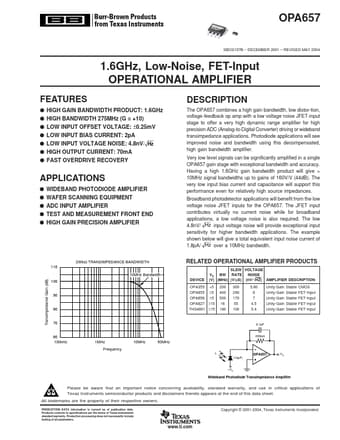

OPA657 Datasheet Preview Page 2 OPA657 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA657, OPA657_Burr

Manufacturer:

Burr-Brown

File Size:

384.94 KB

Description:

Operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA657, OPA657_Burr.
Please refer to the document for exact specifications by model.
