OPA658 OPERATIONAL AMPLIFIER

The OPA658 is an ultra-wideband, low power current feedback video operational amplifier featuring high slew rate and low differential gain/phase error. The current feedback design allows for superior large signal bandwidth, even at high gains. The low differential gain/phase errors, wide bandwidth a.

OPA658 Features

* q UNITY GAIN STABLE BANDWIDTH: 900MHz q LOW POWER: 50mW q LOW DIFFERENTIAL GAIN/PHASE ERRORS: 0.025%/0.02° q HIGH SLEW RATE: 1700V/µs q GAIN FLATNESS: 0.1dB to 135MHz q HIGH OUTPUT CURRENT (80mA) APPLICATIONS q MEDICAL IMAGING q HIGH-RESOLUTION VIDEO q HIGH-SPEED SIGNAL PROCESSING q COMMUNICATIONS

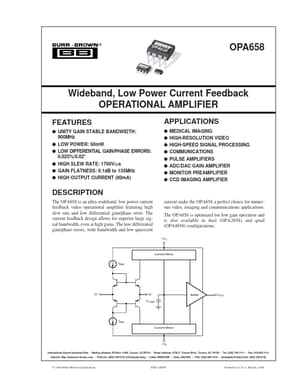

OPA658_Burr-BrownCorporation.pdf

OPA658 Datasheet Preview — This datasheet PDF includes multiple part numbers: OPA658, OPA658_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OPA658, OPA658_Burr

Manufacturer:

Burr-Brown

File Size:

215.97 KB

Description:

Operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA658, OPA658_Burr.
Please refer to the document for exact specifications by model.
