OPA680

Wideband / Voltage Feedback OPERATIONAL AMPLIFIER With Disable TM

OPA680 Features

* q q q q q q q q WIDEBAND +5V OPERATION: 220MHz (G = 2) UNITY GAIN STABLE: 400MHz (G = 1) HIGH OUTPUT CURRENT: 150mA OUTPUT VOLTAGE SWING: ±4.0V HIGH SLEW RATE: 1800V/µs LOW SUPPLY CURRENT: 6.4mA LOW DISABLED CURRENT: 300µA ENABLE/DISABLE TIME: 25ns/100ns APPLICATIONS q q q q q q q VIDEO LINE DRIVER

OPA680 General Description

The OPA680 represents a major step forward in unity gain stable, voltage feedback op amps. A new internal architecture provides slew rate and full power bandwidth previously found only in wideband current feedback op amps. A new output stage architecture delivers high currents with a minimal headroo.

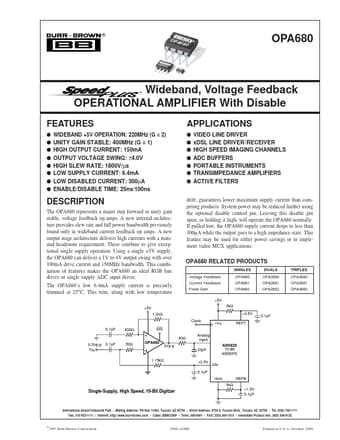

OPA680 Datasheet (235.16 KB)

Preview of OPA680 PDF

Datasheet Details

Part number:

OPA680

Manufacturer:

Burr-Brown

File Size:

235.16 KB

Description:

Wideband / voltage feedback operational amplifier with disable tm.
